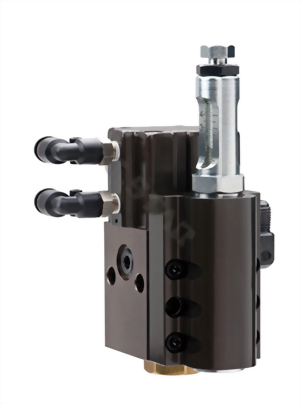

APD系列定量閥基本規格
| APD系列定量閥基本規格 | 型號 | |||||
| APD003 | APD010 | APD050 | APD100 | APD200 | ||
| 吐出量 | 0.05~0.3 | 0.2~1.2 | 0.5~5 | 2~10 | 4~20 | |
| 最小作動壓力 Minimum operating pressure (Mpa) | 潤滑油脂部份Lubricant | 5.9(60kg) | ||||
| 氣壓部份Barometric pressure | 0.3(3kg) | |||||
| 使用壓力範圍Operating pressure range (Mpa) | 潤滑油脂部份Lubricant | 5.9~14.7(60kg~150kg) | ||||
| 氣壓部份Barometric pressure | 0.3~0.7(3 kg~7kg) | |||||
| 潤滑油脂部份可承受壓力Bearable pressure on lubricant (Mpa) | 20.6(210kg) | |||||
| 可使用潤滑油(黃油) Grease range | NLGI No.0~No.2 | |||||
| 重量Weight (kg) | 約1.4 | 約1.5 | 約1.6 | 約3.6 | 約4.3 | |
